The LandsFACTS model was originally (v1.6) set up to simulate cropping systems at the landscape scale. Since 2007, it was further developed to allow modelling land uses at multiple scales within an evolving environment. The diagram below presents the main inputs and outputs of the model.

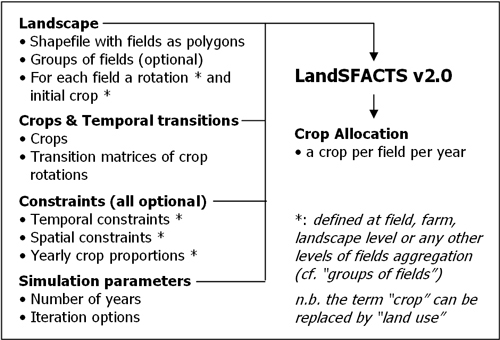

Diagram of LandSFACTS version 2.0 inputs and outputs

Figure: LandSFACTS version 2.0 inputs and outputs

Temporal constraints: return period, minimum and maximum repetition of crops within a field, forbidden crop sequences, past allocations. Each constraint can be field specific.

Spatial constraints: yearly land capability, separation distances between crops, linked fields. In progress: connectivity metrics.

Further information on LandSFACTS:
