Soil treatments and field site

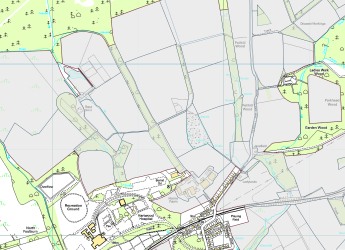

Map of Hartwood Research Station
Studying the long term impact of wastewater sludge on soil fertility

The LTSE field site at Hartwood is a dedicated site and is fenced off to prevent disturbance by grazing livestock. The topsoil, typical of that found in the agricultural land in Scotland is a medium textured sandy clay loam consisting of 21% clay and 4.7% organic carbon. This amount of soil organic carbon is typical of Scottish arable or ley-arable agricultural soils. Soil pH is maintained at about 5.8, the recommended practice for grassland in Scotland.

Image showing the site layout at the LTSE

The site was set up with three replicate blocks of 23, 8x 4.5. m plots with a permament 2-3 m grass buffer strip between plots to prevent soil movement during cultivations. The treatments within each replicate block were arranged randomly with the control and digested blank treatments duplicated within each each block.

In the first four years, sludge was applied to the soil surface mannually and then mixed into the soil to a depth of 20-23 cm using a “Celli” spading machine. Subsequently, the plots were cultivated annually using a rotorvator and reseeded using Italian ryegrass.

Photograph of soil samples being taken using a screw augerSoil samples are taken using a screw auger to a depth of around 15 cm, with 20 "cores" removed from each replicate plot in a "W" pattern. The cores are mixed in a bag and passed through a 2 mm sieve to provide a homogeneous soil sample for analysis. Soil not used immediately in the analysis is either stored frozen at -80oC for DNA analysis or air-dried as part of the National Soil Archive.

Metals and the target concentrations (mg/kg)


Rate 1 Rate 2 Rate 3 Rate 4 Upper UK permissible limit
Zinc 150 250 350 450 200
Copper 50 100 150 200 135
Cadmium 1 2 3 4

Level of heavy metals added to soil plots in the long term build up treatments

Level of metal (mg/kg soil)
Sludge Application Rate applied (kg/ha annually) Initial soil level 2011 level Maximum UK permissible
Zn 15 71.2 161 300
Cu 7.5 18.8 62.5 135
Cd 0.15 0.21 1.0 3
