Some 3D Visualisation Projects are listed below:

Integration of GIS and Virtual Reality for Future Land-Use: A Case Study from Royal Deeside

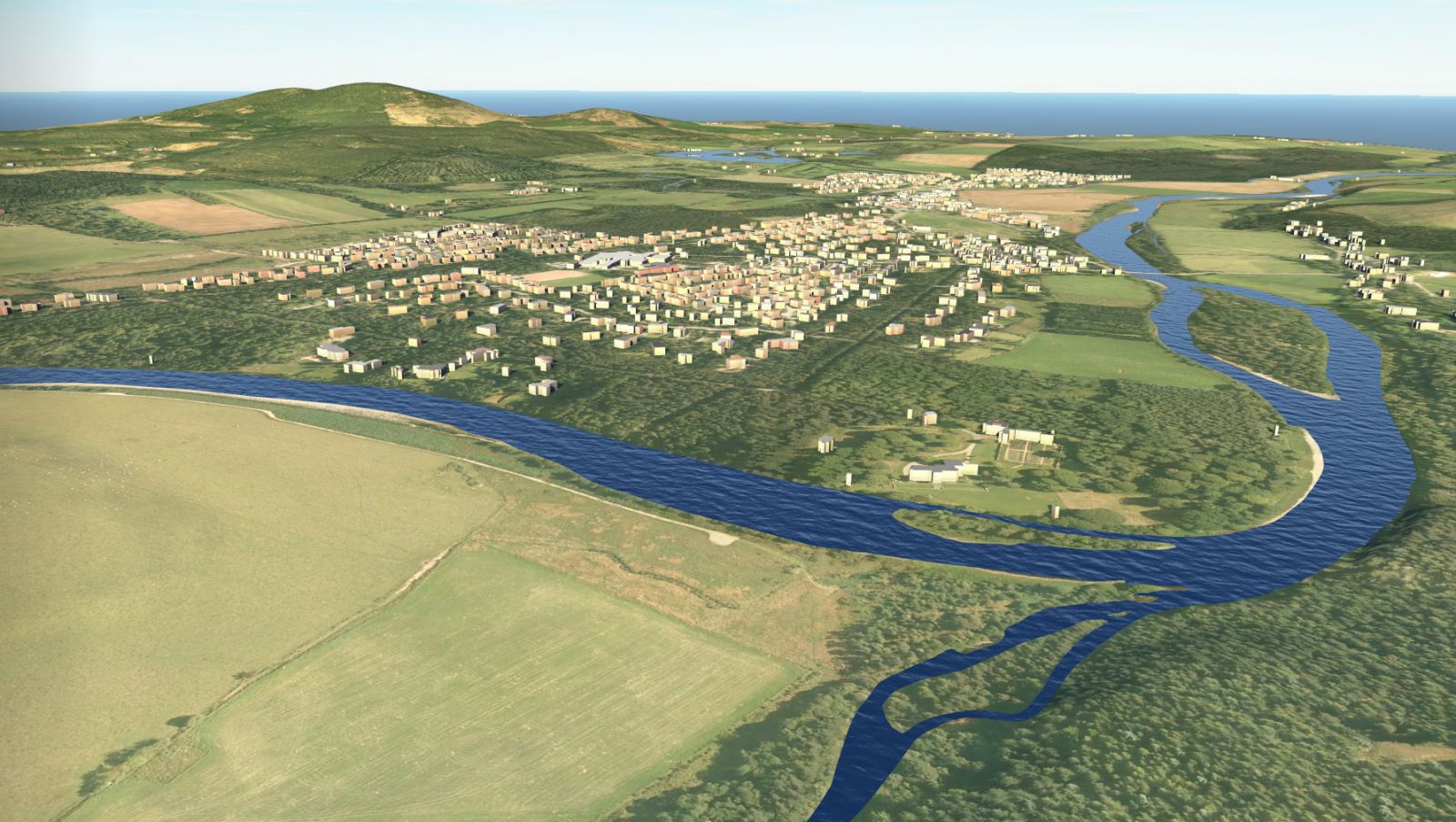

A 3D model of Aboyne was developed to present information on land-use as part of a knowledge exchange programme. This was implemented as a tool for eliciting stakeholder and public opinions on benefits associated with land-use. Multiple functionalities of the interactive models for the case study area have been designed and tested among participants such as: ‘drag-and-drop’ features. It allows audiences to choose where they would like to position elements was added based on a series of 3D icons. The virtual reality environment (Virtual Landscape Theatre) was used as the medium with invited groups from schools and youth groups, university students, natural heritage managers, planners, and the general public, enabling fly-through, exploring specific views, and switching between presence and absence of some wildlife.

Moving Forward from Ash Dieback: Scenarios of Change in Visualisation

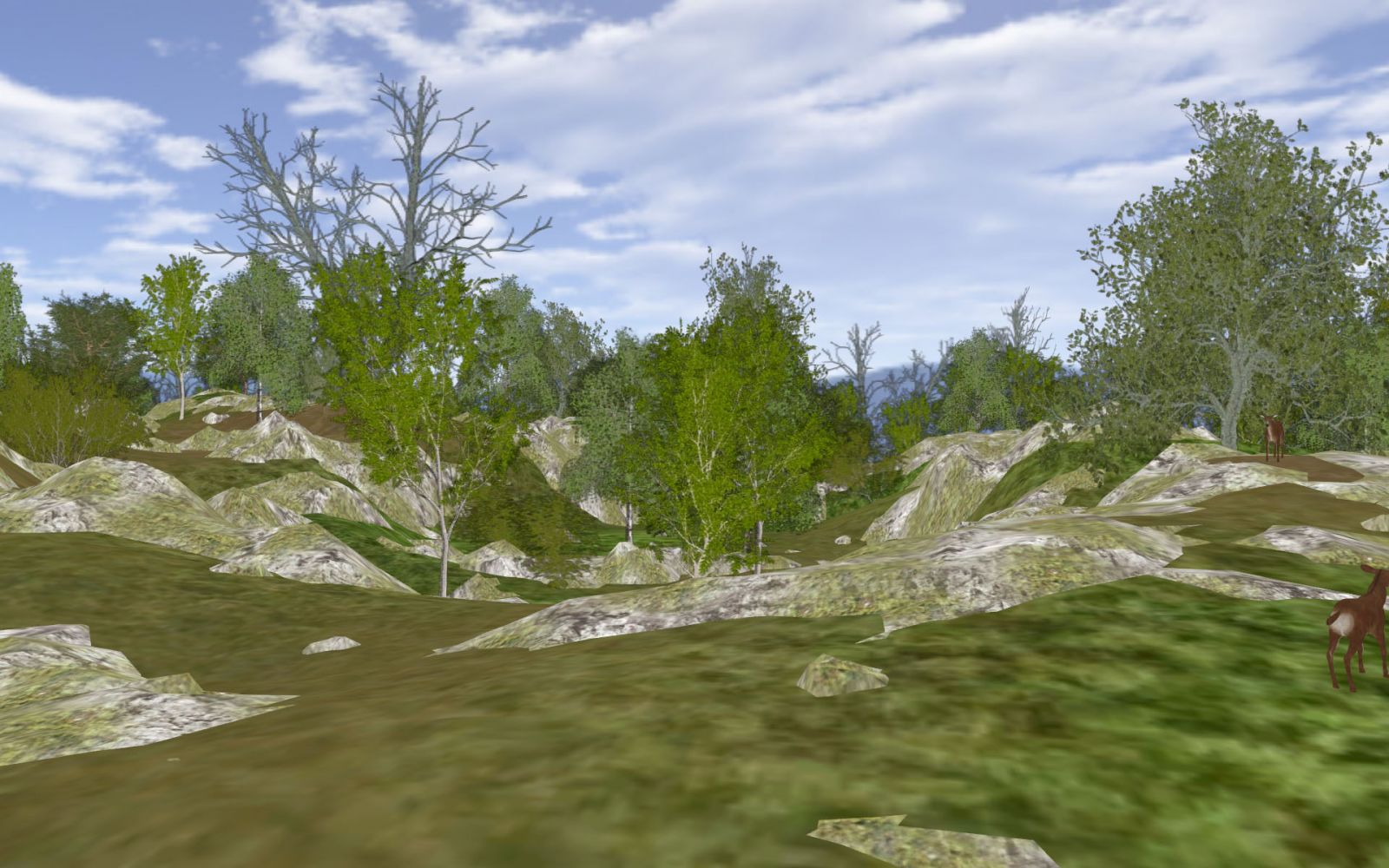

The approach taken was to present the information in an interactive highly visual way by developing a 3D model using Maya software and generating trees showing various stages of infection. Take the video walk-through of a virtual reality model of a hypothetical woodland in north-west Scotland to learn what signs to look for, informing you of a woodland being infected (red sign) or uninfected (blue sign), photographs of symptoms of the disease, and view scenarios of the loss of ash trees and regeneration of woodland trees.

Offshore Renewable, West Coast

A prototype 3D model was developed to present alternative designs of a hypothetical windfarm offshore of the island of Tiree, on the west coast of Scotland. The model was used to identify issues associated with the development of offshore windfarms, including alternative options for the heights of wind turbines, and factors such as sea state and atmospheric visibility.

Community Planning and Engagement for Greenspace Using 3D Visualisation Tools

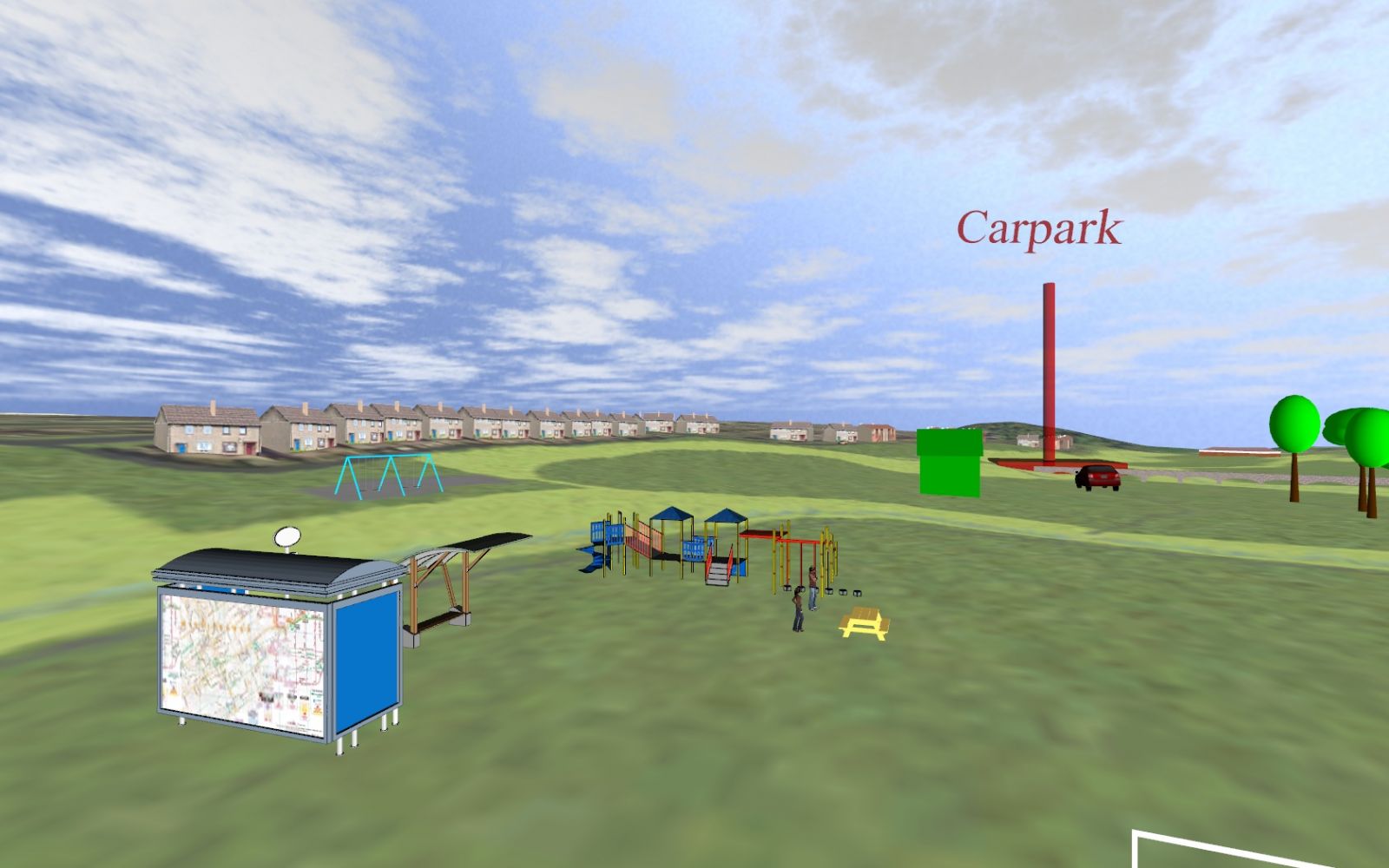

This research describes the findings of engagement with local communities in a case study in Dundee identifying scenarios of potential greenspace content, use, and environments conducive to health and well-being. 3D visualisation tools were used to present multiple functions of the greenspace, community-identified priorities and the introduction of potentially new 3D features such as dog exercise area, shelter for adults, barbeque equipment and car parking.

Public Interpretation of Land and Sea Use Using Visualisation Tools

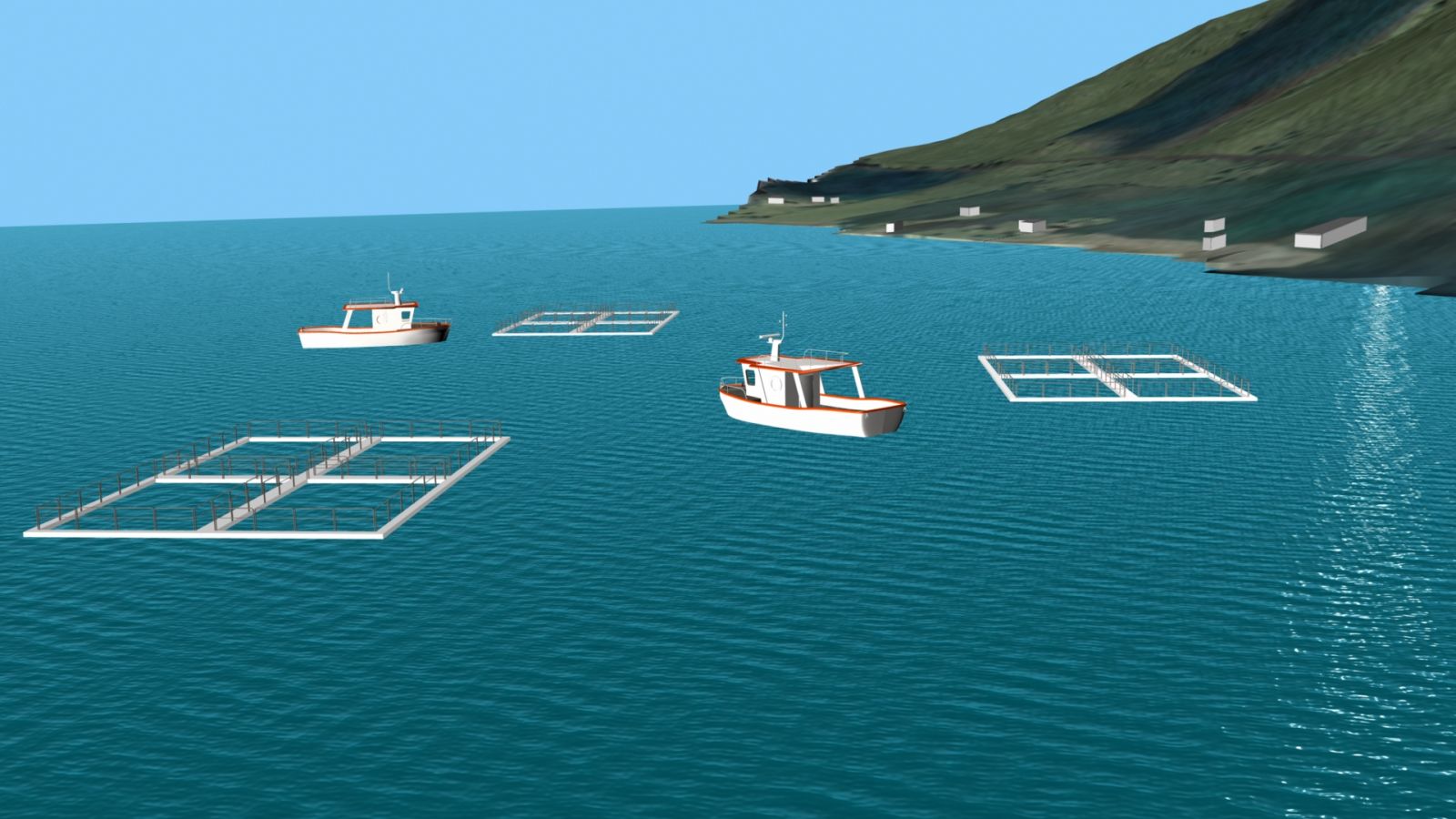

Prototype 3D models offer greater flexibility in delivering a comprehensive creative features set with tools for animation, modeling, simulation and rendering in Loch Linnhe.

Developing a Novel Approach for 3D Visualisation of Tarland

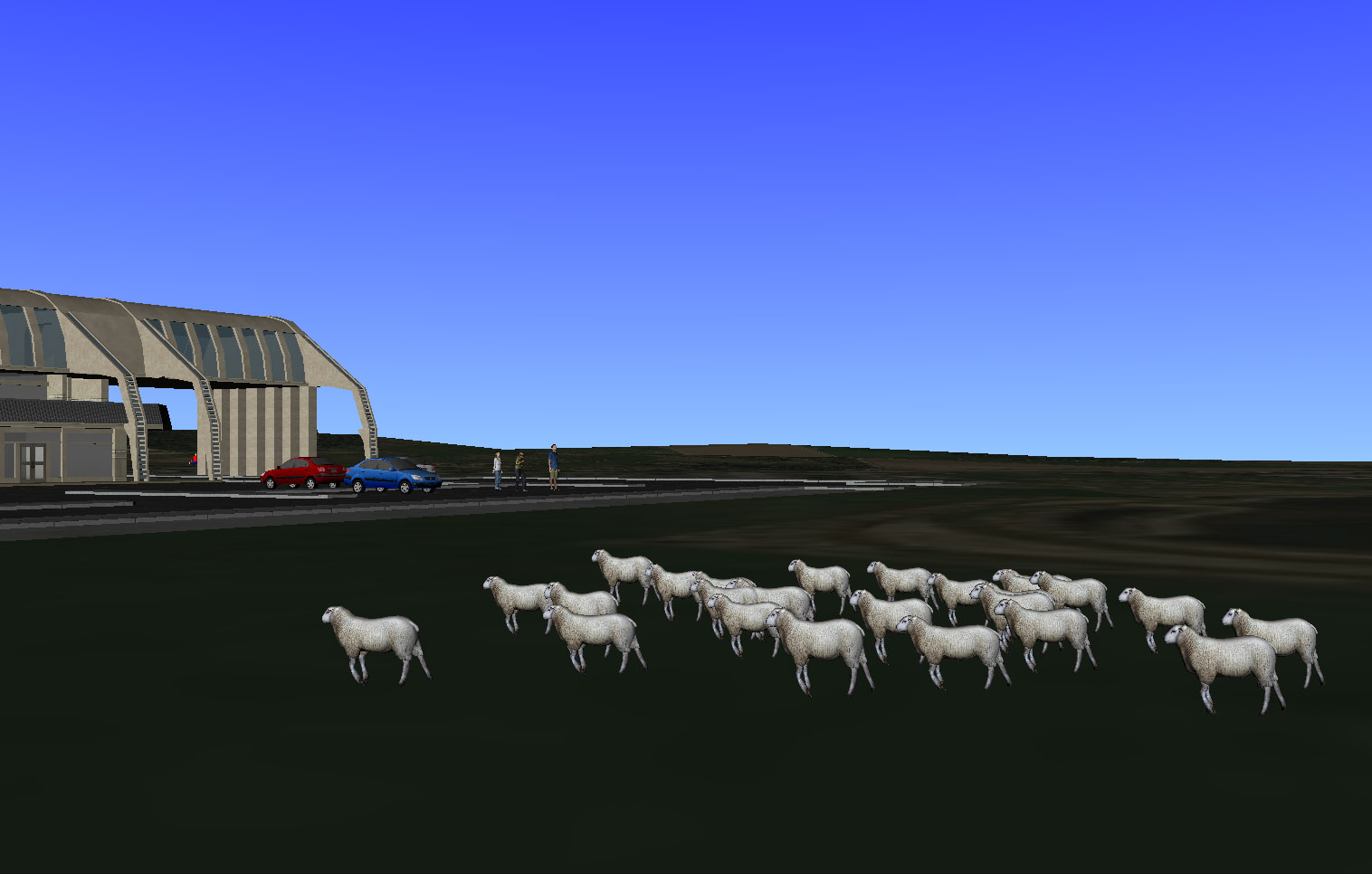

It is important for development of prototype models for use in raising public awareness of changes in rural areas, focusing on greenspaces, and testing responses to scenarios of change. Specifically, the focus is on the design of appropriate types and speeds of movement of features. This modelling is done using the Maya and ArcGIS software packages together in a novel combination of spatial and visualisation tools. The experiment results show evidence that different types of animation with interactive communication will influence participation and decision making in land use planning.

Animation of Undersea Environment, with Movement of Fish,Water,Shadows and Flora

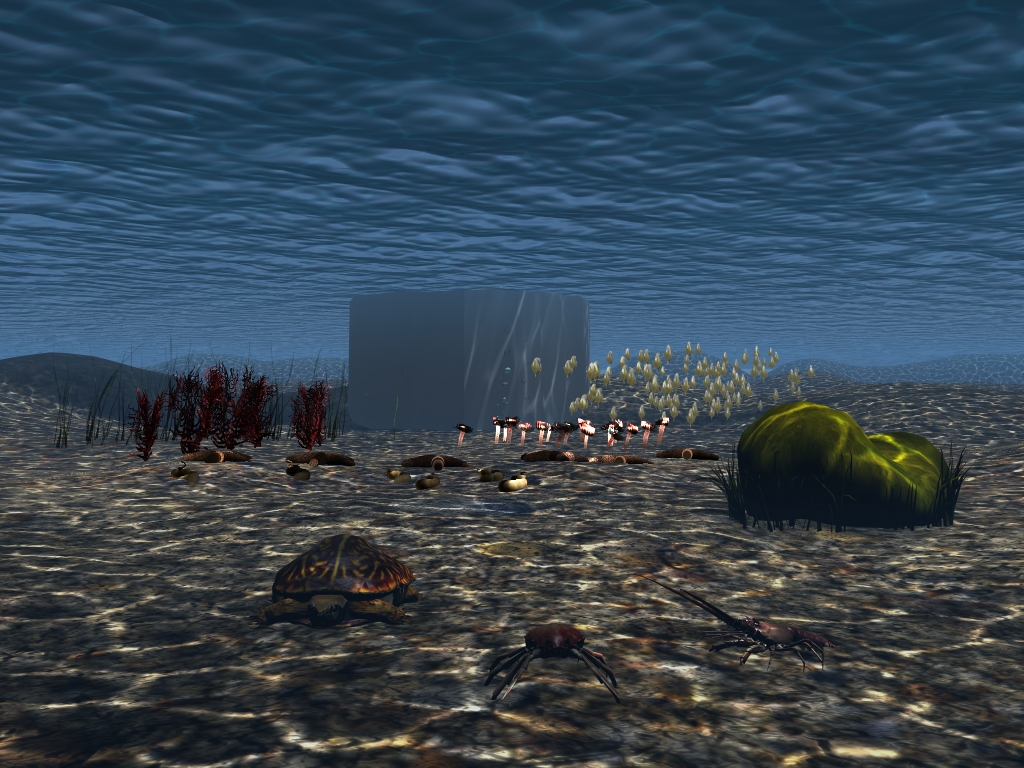

The model includes the representation of lighting and consequent illumination and reflections, and the movement of the sea surface. It includes marine flora and fauna such as starfish, sea weed, sea grass, sea anemone, shell, fan coral, coral reef rocks with lobster, crabs, dolphins, and other fish. This model is the basis of an animation of a hypothetical marine environment for discussing issues relating to potential impacts of change and the introduction of man-made structures, such as renewable energy developments.

Visualise Offshore Oil Platform with Different Sea State

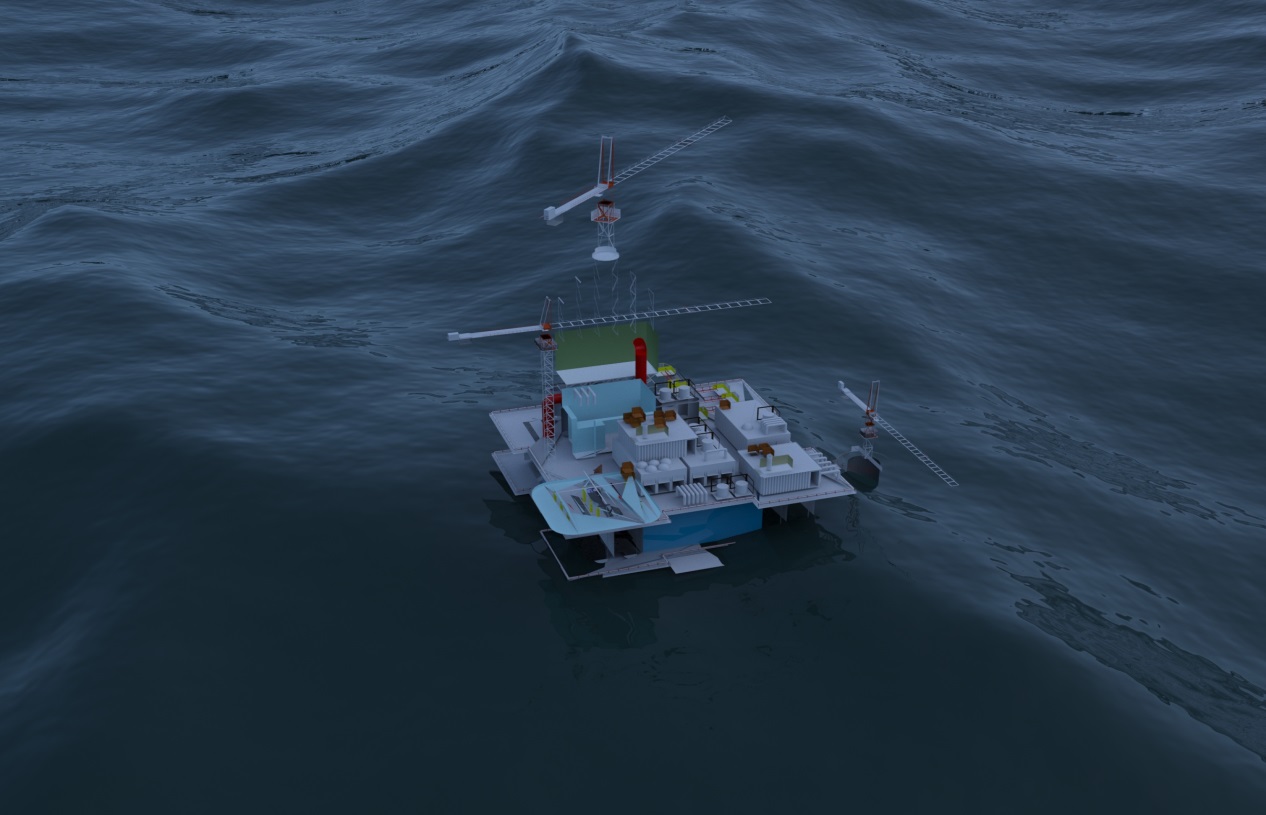

The 3D model of Oil Platform incorporates different sea states, according to the World Meteorological Organisation 0-9 scale. The 3DS Max software is used to develop the sea states. The ‘Tide Height’ parameter is used to determine the height of nominal plane of the sea surface for computing reflections.

Renewable Energy, Solar Farm Visualisation

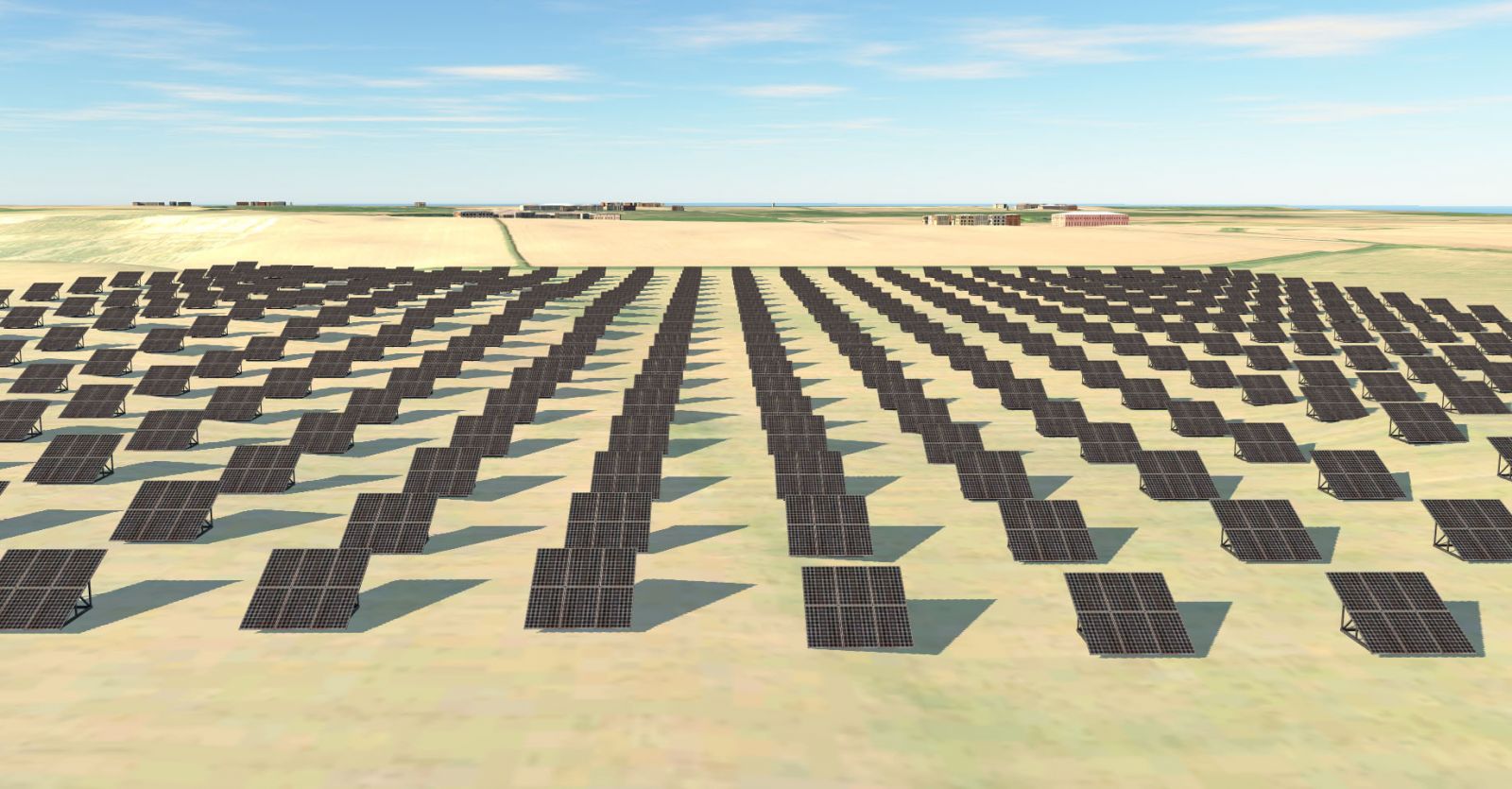

A prototype 3D model was developed to present alternative designs of a hypothetical Solar Farm. In the online version there could be different layers people could click on or off and add comments.
